track power to turnout

Hello,

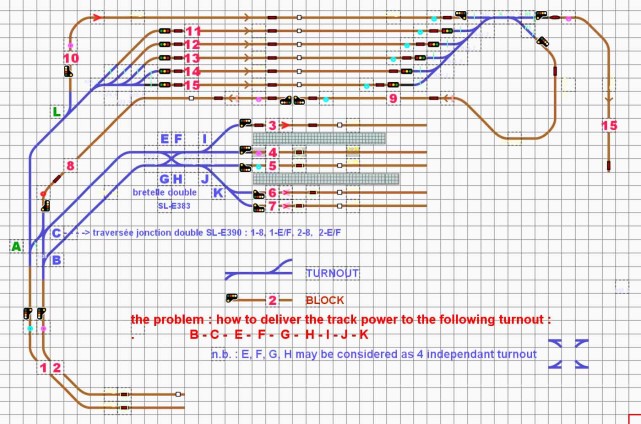

I have a problem to determine where to cut tracks and how to connect relays in the enclosed configuration
tks for suggestion.
Philippe


Hi Philippe,

Have you read section 6 of Dinamo Plug&Play manual 1.1?

• B/G is just powered from 2

Assuming C is a double slip turnout, NOT a crossing:

• C/E can both be powered by relay(1) from 1 or 2
• F/I can both be powered by relay(2) from C/E or 2
• H/J/K can be powered by relay(3) from C/E or 2

Further:

• The section between 9/15 and 11..15 can be powered by relay(4) from 9 or 15

Best regards,
Leon

Hi leon,
Parapraph 6 gives extremely simple examples which do not help a lot the first time in solving a more complex problem.
I feel I have understood now how to proceed, I mean small step by small step.
Thank you.
Best regards.
Philippe
